PERFORMANCE

A Tried and True Global Standard

With a 50+ year lifespan, LAPP Porcelain Long Rods have been protecting global transmission lines since the 1950s, with no reported failures in service over the past 5 decades.

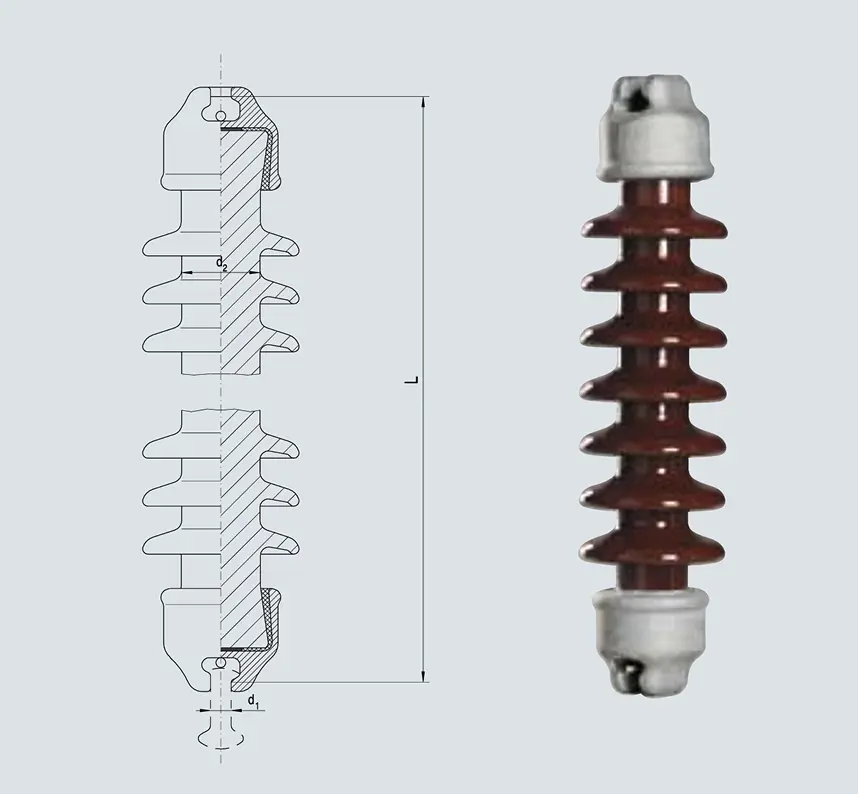

Specifications

Unit Length 80″
Max Core Diameter 4.92″
Min Core Diameter 1.77″
Max Shed Diameter 10.43″
Max Shed Overhang 3.14″
Tensile Strength Up to 550kN
Creepage Distance Up to 2.16 in/kV

Standards

IEC 60433 – 2023
IEC 60383 – 2023
IEC 61325 – 1995

Puncture-proof (IEC 60383)

No need to stock replacements

40% lighter due to minimal metal parts – 3 per insulator

No encapsulated cement to cause hoop stress failure

Inspection every 2-3 years – 50-60% less maintenance

VS

Vulnerable to puncture, steep wave testing required

Replacement stock always necessary

15-30 metal components per string – heavy and prone to corrosion

Portland concrete used in assembly – at risk of material growth

Yearly inspection required

Case Studies

Unbeatable in coastal, high-pollution regions

Read how LAPP Long Rods are used in the Netherlands to combat high levels of saltwater fog.

Learn more
03
Sep
Unrivaled in harsh desert environments

LAPP Long Rods have been used for decades to combat Kuwait’s extensive dry season and high pollution levels.

Learn more
03
Sep

Pollution Resistant,
Cost-Effective, Carbon Efficient

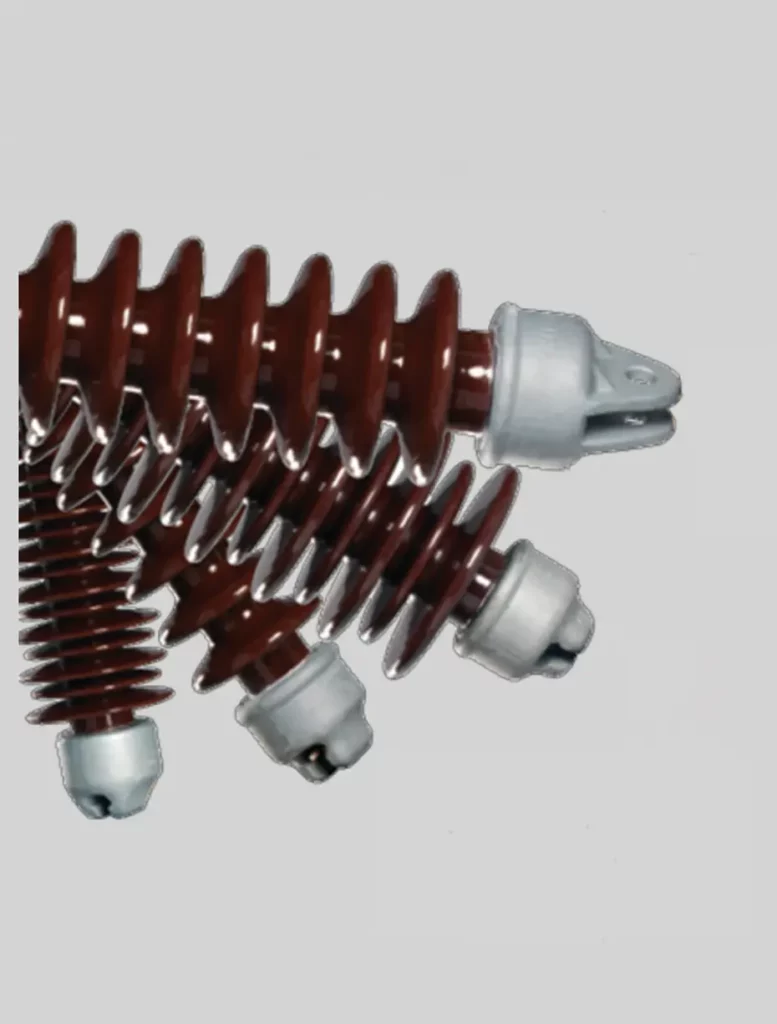

POLLUTION RESISTANT

Pollution Performance in the Harshest Environments

Adaptable shed profiles mean our Long Rods can be built to withstand the most severe environmental conditions.

  • Customizable design for advanced performance in any conditions
  • Steep shed profile combats saltwater fog in coastal regions
  • Open shed profile protects against pollution buildup in arid climates

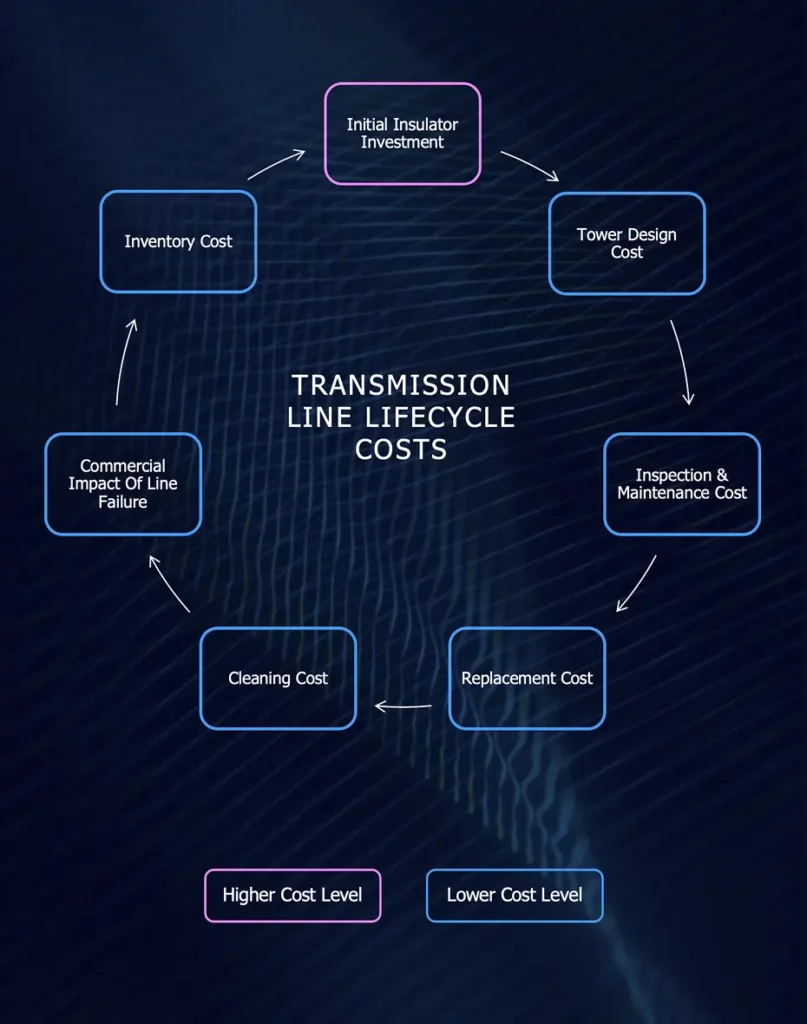

COST EFFICIENT

Long Lifespan, Less Maintenance, Lower Lifetime Cost

The proven longevity and durability of Porcelain Long Rods means they have the lowest Total Cost of Ownership of all other transmission line insulators.

  • 50+ year lifespan
  • Minimal maintenance
  • No failure or inventory costs

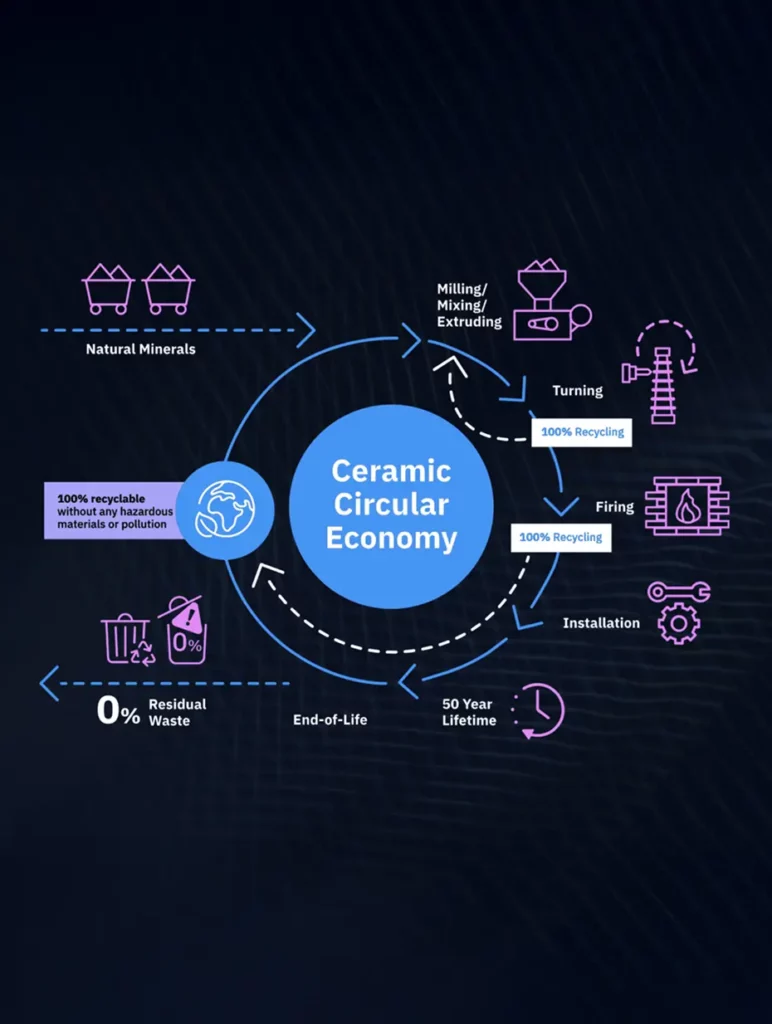

CARBON FOOTPRINT

The Lowest Carbon Footprint of All Insulators

Made from natural ingredients and fully recyclable, LAPP Long Rods are the most carbon-friendly transmission line insulators on the planet.

  • Natural composition
  • Long lifespan
  • 100% recyclable
